Gear Manufacturing 125

CNC GEAR HOBBING MAKE : WMW MODUL MODEL : ZFWZ 1250 The machine has been retrofitted Max. Wheel dia : 1250 mm
 Gear width : 600 mm
 Max. Modu…

Type: UWIE Producer: SAACKE Made in: 2002 GO 2017 Characteristic: GO 2017: - new spindle HSK 50C - new ballscrews - new motor - new elec…

The machine is in good technical condition. Number of axes: 5 X-axis travel: 340 mm Y-axis travel: 240 mm Z-axis travel: 840 mm Rotary table: 260 st …

Max gear diameter : 200 mm Gear width : 250 mm Modul mini/maxi : 0.5/3.5 Hob speed : 125/1250 Rpm Total power requirement : 45 kW

NC gear grinder with Siemens CNC 840 DE, retrofitted in 2008 Module Min/Max 2/14 Max grinding Diameter 800mm Max grinding Diameter Without tailsto…

Wheel diameter - max. 280 mm Wheel width 330 mm Module - max. 5 Module - min. 1 Control LH 90 LIEBHERR Number of teeth - min. 7 Tool speeds 4,0…

Technical data Number of axis total 5 X axis 400 mm Y axis 250 mm Z axis 250 mm grinding diameter 1 - 10 mm Spindle nose: HSK 50 Grindin…

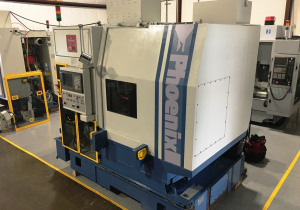

GLEASON PHOENIX 1000HC Max Dia. Gear: 1,000 mm Dimensions: 5.5 x 5.3 x 3.2 m Weight: 29.5 to Control: CNC (FANUC series 150M) max. w…

Control Siemens 840 Cutting Head Spindle Speed 20-110 rpm Main Motor 100kW Maximum Gear Diameter 275mm Maximum Gear Width 55mm Maximum Modu…

EQUIPPED WITH: Fanuc 16iM Control Arbor Support Tailstock w/Center Hob Setting Stand High Helix Head Pulse Generator 6-Axis Light Curtain …

(LxBxH) 1500mm x 1300mm x 1300mm / possible to modified Power 100 kW 2 x heating zones 1150Celsius PLC Auto door

6-axes CNC Tool Grinding Machine. CNC control NUM 1060 The machine has a standard software package (grinding software, oscillation, dressing sof…

- distance clamping mandrel - milling center min./max. 60/1160mm - wheel Ø with counter holder 1100mm, number of gear max. 500mm, weight max. 5500 k…

Max gear diameter: 180 mm Min center distance: 10 mm Max center distance: 200 mm Max radial speed: 5000 mm/min Machine table: Max speed: 8…

Grinding of threaded spindles; also single-start, multi-start, cylindrical and conical internal and external threads Workpiece diameter 250 mm T…

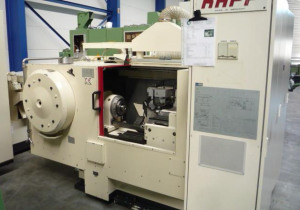

Wheel diameter - max. 250 mm Wheel width 320 mm Module - max. 10 Module - min.0.1 Number of teeth 2 - 999 Control KAPP D 200 OPTRONIC Grinding …

Work capacity max. diameter : 40 mm max. module : 1 (0.8) Workpiece length max. : 80 mm max. gear wheel width : 50 mm Working way X axis Qu…

max. wheel diameter 120 mm max. module 3 Control SINUMERIK 840 D table diameter 145 mm table hole 80 mm rotary table speeds infinitely variable …

under power, working condition - min. grinding diameter 240 mm - max. grinding diameter 2000 mm - max. workpiece length 670…

Max. wheel diameter 630 mm Gear width 215 mm Max. module 12 Min. module 1 Number of teeth 5 – 140 Max.helical ang…

Machines model 5346 are designed for precision milling of spur gears made of cast iron, steel, alloy steels, light alloys by the method of running in…

Max. wheel diameter: 630mm Sprocket width: 180mm Max. module: 8 Min. module 1 Table bore diameter: 160mm Number of strokes: 47 – 300 strokes/min…

The machine is in good technical condition, it is possible to test it by agreement. Technical data: - number of stages of spindle speed: 2 - peripher…

Max. wheel diameter : 1000 mm Gear width : 200 mm Max. module : 12 Stroke : 230 mm Worktable diameter : 1005 mm Max. table load capacity : 2750 …

Type: NUA 25 Producer: PONAR Made in: 1986 Characteristic: Length of the working table: 915 mm Width of the working table: 135 mm Maximum sp…

Type: 01-6 AMC Producer: Christen Made in: 1991 Characteristic: Maximum rotary speed of the spindle: 3090 1/min Wheel diameter: 125 mm Drill…

8 AXIS CNC GEAR GRINDER MIKRON PFAUTER - G300 CNC NUM 760 Year: 1997 Max. Gear Diameter: 350 mm Max. Module: 6 mm

Wheel diameter - max. 250 mm Tooth width - max. 25 mm Pitch circle diameter - external toothing 120 mm Pitch circle diameter - internal toothing 1…

suitable for the cutting of spiral bevel and hypoid gears and pinions up to 8.5” (216mm) diameter via “face-milling” and 7.5” (190mm) via “face-hob…

Type: HOUFEK 2500 EKO Producer: PILART Made in: 2007 Characteristic: Sanding belt length: 6400 mm Sanding belt width: 150 mm Max. working le…
