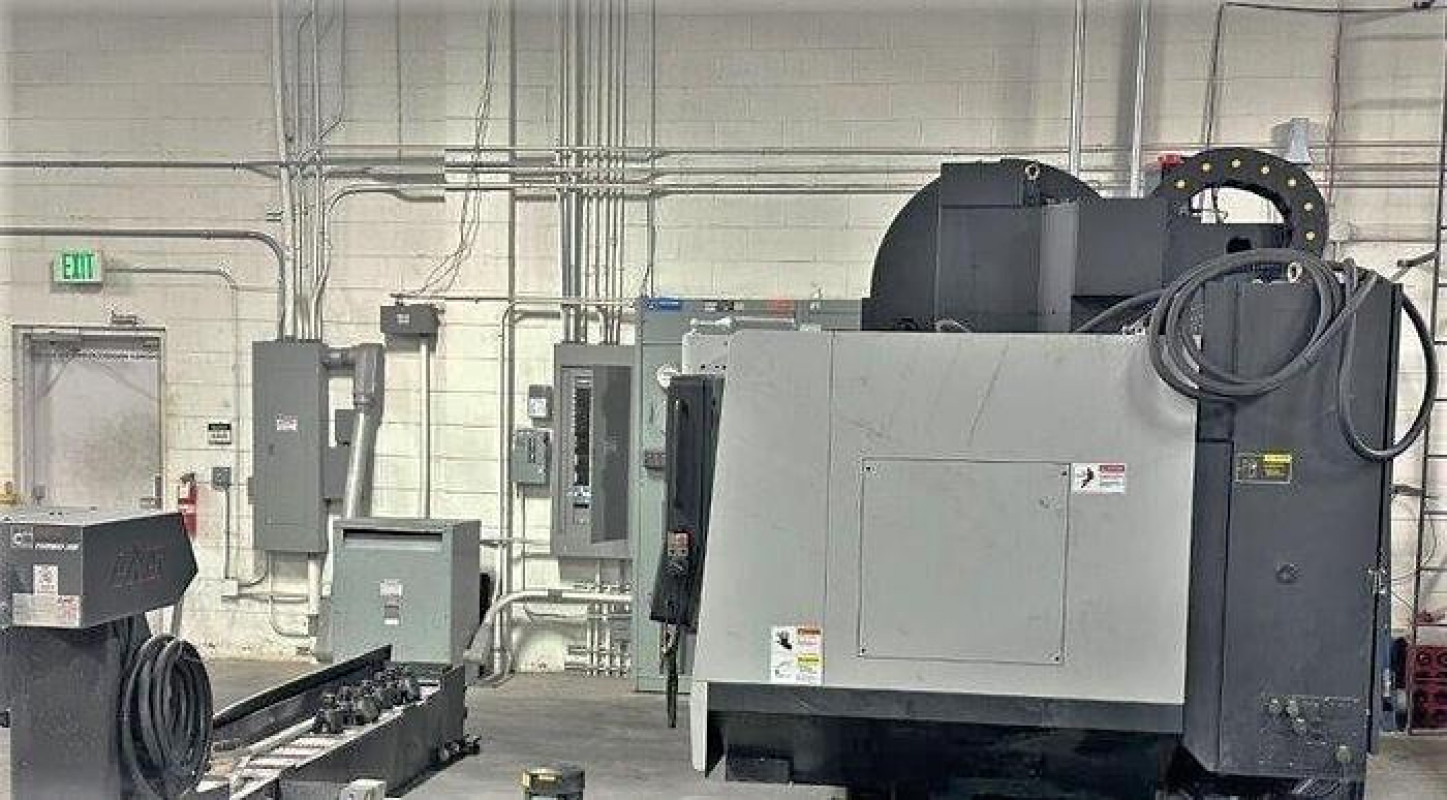

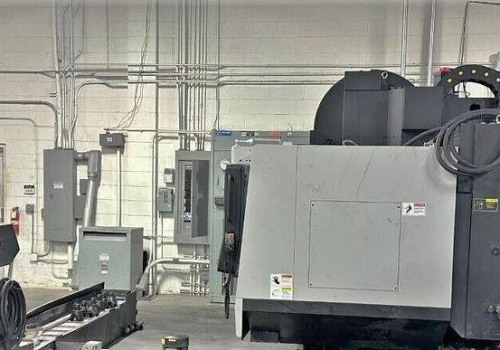

2021 Doosan Dnm 5700S

Listing description

Renishaw Part Probing
-Spindle Mounted Probe is NOT included
15,000 RPM Spindle - Big Plus
Chip Conveyor - LNS Turbo
Coolant Through the Spindle - 300 PSI
40 Station Side Mounted Tool Changer
Rigid Tapping
Remote Jog Handle
Flood Coolant System
Work Light
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Chiller Unit
Wired 220V Electrics

**Run Time Hours only 4,619**
**Cutting Time Hours only 3,569**

Specifications

Manufacturer Doosan
Model DNM 5700S
Year 2021
Condition Used
Machine Control Fanuc i Series Plus Control
Table size 51.2" x 22.44"
Maximum Table Load 1,300 lbs.
X-Axis Travel 41.3"
Y-Axis Travel 22.44"
Z-Axis Travel 20.08"
Spindle Taper CAT #40 Big Plus
Spindle Speeds 15,000 RPM
Spindle Motor 25 HP
Number of Tool Positions 40 Station Side Mounted ATC
Tool Change Time Tool to Tool 1.3 Seconds
Rapid Traverse Rates X, Y / Z 1653 IPM / 1417 IPM
Cutting Feedrates 590 IPM
Machine Dimensions 122.4" x 95" x 117.5"
Machine Weight 14,330 lbs.

This equipment is located in US
