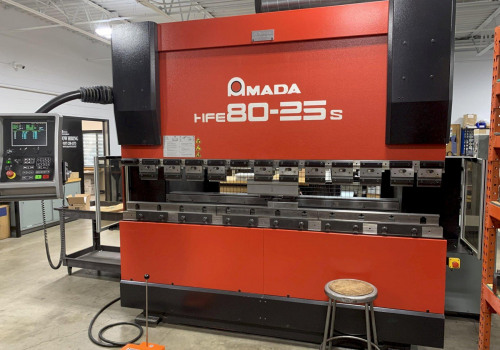

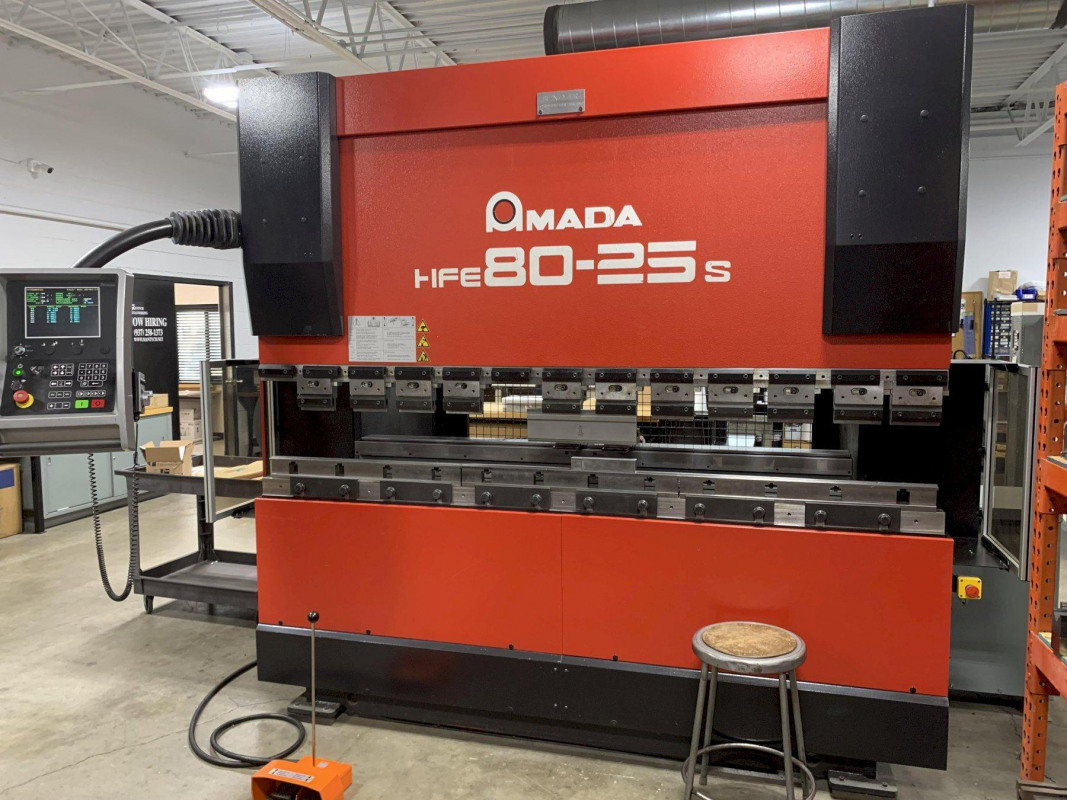

AMADA HFE 80-25S

Listing description

Preliminary specifications: (all specification subject to independent verification by the buyer)
Overall Bending Length - 101.18"
Distance Between Housings - 83.66"
Tonnage Capacity Metric - 80 Ton
Tonnage Capacity US - 88 Ton
Throat Depth - 16.5"
Shut Height w/o Bolster - 10.7"
Length of Stroke (Adjustable) - 7.8"
Open Height - 18.5"
Pressing Speed - 0 - 47 IPM
Fast Approach Speed - 472 IPM
Fast Return Speed - 472 IPM
Drive Motor - 20 HP
Approximate Machine Dimensions - 122" x 58"
Approximate Machine Height - 101"
Approximate Machine Weight - 14,600 LBS

Equipped with:
Amada CNC Back Gauge
Manuals
There are no dies included.

This equipment is located in US
