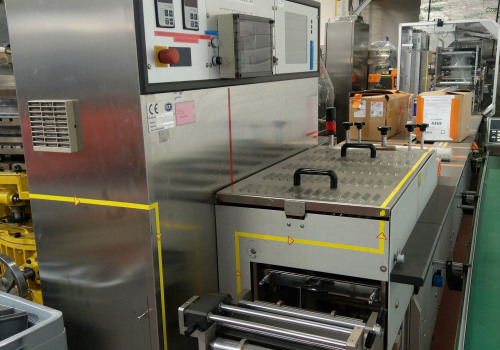

CAM M92S Thermoforming - Form, Fill and Seal Line

Listing description

Blistering machine

Manufacturer: CAM PARTENA
Model: M92S
Year: 2007
Serial number: M92.313
Max pitch: 180mm
Maximum film width: 286mm
Max depth of the cell: 25mm
Speed : 20 to 50 cycles/min
Output belt width: 90mm
S7-300 PLC
Current formats :
- PF2314-1
o Syringe: 87.5xØ11mm
o Needle: 63xØ10mm
o Vial: 34.5xØ16.5mm
o Blister pack: 128x49x18mm
o Lid: PET-PE 0.012-0.05mm
o Blister: PETG 0.4-0.5mm
- PF2502-1
o Syringe: 87.5xØ11mm
o Needle: 69xØ10mm
o Blister: 128x36x17mm
o Lid: PET-PE 0.012-0.05mm
o Blister: PETG 0.4-0.5mm
Water: 1 to 2.5 bar, 0.7m3/h
Compressed air: 6 to 8 bar, 500 Nl/min
Hydraulic pressure: 96 to 144 bar, TERESSTIC-T32 oil or equivalent (0.7L)
Overall dimensions (LxWxH) : 7800x1900x2000mm
Dimensions of size changeover trolley (LxWxH) : 1000x600x1450mm
Power: 3x400V+N+PE, 50Hz, 15kW
Second hand blistering machine tested and functional
Sold EXW

This equipment is located in FR

Please note that this description may have been translated automatically.

Listing information

Manufacturer CAM
Model M92S
Year 2007
Country France France
Condition Good
Main category Process and Packaging
Subcategory Sealing & Wrapping Equipment
ID P202111212
