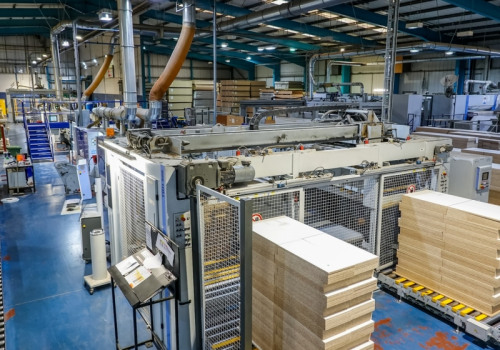

Homag KFL 525/5/A3/15 + KFL 526 /9/A3/25 Edgebanding Line

Listing description

Bargstedt TBH 500/D/25/12 Panel Feeder/Loader
Min/Max Panel Width: 7.68" - 47.24"
Min/Max Panel Length: 9.84" - 98.43"
Max Panel Height from Ground: 62.99"
Lifting Capacity: 50Kg
Work Cycles/Min: 18
Movement System: Vacuum/Suction Cups

Homag KFL 525/5/A3/15
Combination Squaring Edgebanding Machine - First Pass
EVA Hotmelt Glue System
Operating Units LH Side - 8
Operating Units RH Side - 8
Min Panel Length: 9.84"
Min/Max Panel Height: 0.47" - 2.36"
Min/Max Panel Width: 7.68" - 59.06"
Min/Max Panel Thickness: .01" - .12"
Max Forward Feed Speed: 164.04 Ft/Min
Top Rubber Pressure Belt
Panel Sizing/Milling Units:
Double Chipper (Top/Bottom)
Miller Hogger
Glue Pot and PreMelter
5 Roll Pressure System
Edge Processing Units:
Top/Bottom Rough Trimming
Fine Trimming to Trim and Round
Edge Scraping
Glue Scraping
Buffing
Spray Unit
Control System: PC22

Homag Optimat TDL 310/25/12
Rotation System: Double Cone
Rotation Direction: Long to Transverse
Min/Max Panel Width: 7.68" - 47.24"
Min/Max Panel Length: 9.84" - 98.43"

Homag KFL 526/9/A3/25

EVA Hotmelt Glue System

Corner Rounding Unit

Combination Squaring Edgebanding Machine - First and Second Pass

Operating Unit LH Side: 10

Operating Unit RH Side: 10

Min Panel Length: 9.84"

Min/Max Panel Height: .47" - 2.36"

Min/Max Panel Width: 8.86" - 98.43"

Max Forward Feed Speed: 131.23 Ft/Min

Conveyor Track with Dogs: 19.69" Spacing Between Dogs

Top Rubber Pressure Belt

Panel Sizing/Milling Units:

Double Chipper (Top/Bottom)

Miller Hogger

Glue Pot and PreMelter

5 Roll Pressure System

Edge Processing Units:

End Trimming

Top/Bottom Rough Trimming

This equipment is located in US
