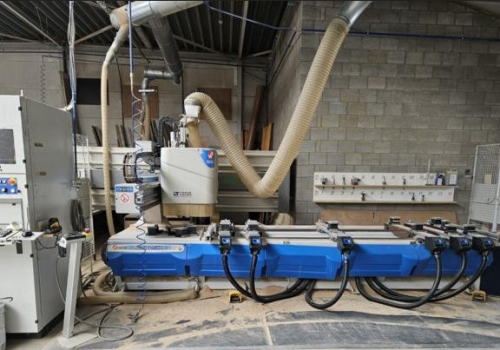

Masterwood Project 415 Wood CNC machining centre

Listing description

Masterwood Project 415
Usefull capacity:
X 3170 x Y 1264 mm
max workpiece thickness: 110 mm
Moving speed: X: 60 m/min, Y: 50 m/min, Z: 20 m/min
6 supports with vacuum cups, pneumatic clamping
Vacuumpump
Main spindle with motor 8 kW, 1000-24000 r/min, C-axis
8 position toolchanger moving with the machining unit positioned at the back
6 position toolchanger moving with the machining unit in Y direction
11 vertical drills
6 horizontal drills, 2 x 2 in direction X, 1 x 2 in direction Y
grooving saw in X
Horizontal spindle 2,2 kW in Y direction
CAD-CAM/Design systeem MASTERWORK

This equipment is located in BE
