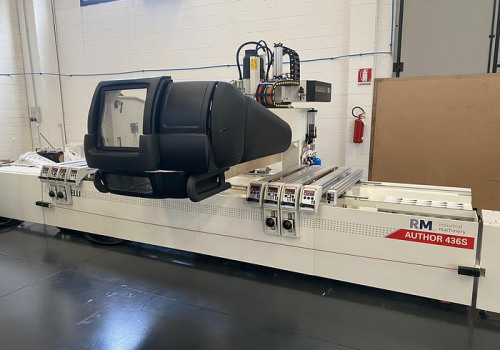

Morbidelli Author 436 S Wood CNC machining centre


Last availability: Oct. 7, 2022

Listing description

PC based Numerical Control with XILOG PLUS software - with additional PC key
Mobile pinecone with functions on command
Working field in X axis 3660 mm
Working field in Y axis 1385 mm
Work field in Z axis mm. 180
Z axis travel 280 mm
N 2 work fields in X
N ° 8 manually adjustable panel support bars with digital display for the visualization of the working quotas
Knee vacuum locking system
N ° 24 Suction cups for panel sealing for each bar
N ° 4 pneumatic bakelite bars for lifting the panel (help loading and unloading)
N ° 1 Vertical electrospindle with automatic tool change and Vektor C axis KW 7,5 (HP 10) - HSK 63 connection cones
RAPID 10 automatic tool change with 10 positions on the operating head
Drilling head composed as follows:
N ° 12 vertical spindles in X axis N ° 7 vertical spindles in Y axis
N ° 4 horizontal spindles in X axis
N ° 2 horizontal spindles in Y axis
N ° 1 Independent blade group with automatic rotation 0 \ 90 ° - KW 2,2 (HP 3) RPM 6000 - blade diameter mm 200
Safety system with bumper system on the operating head
N ° 1 vacuum pump 100 m3 \ h
Automatic lubrication - Automatic suction from NC

This equipment is located in IT


Please note that this description may have been translated automatically.

Last availability: Oct. 7, 2022

Listing information

Manufacturer Morbidelli
Model Author 436 S
Year 2009
Country Italy Italy
Condition Good
Main category Woodworking
Subcategory Wood machining center
ID P21007913
