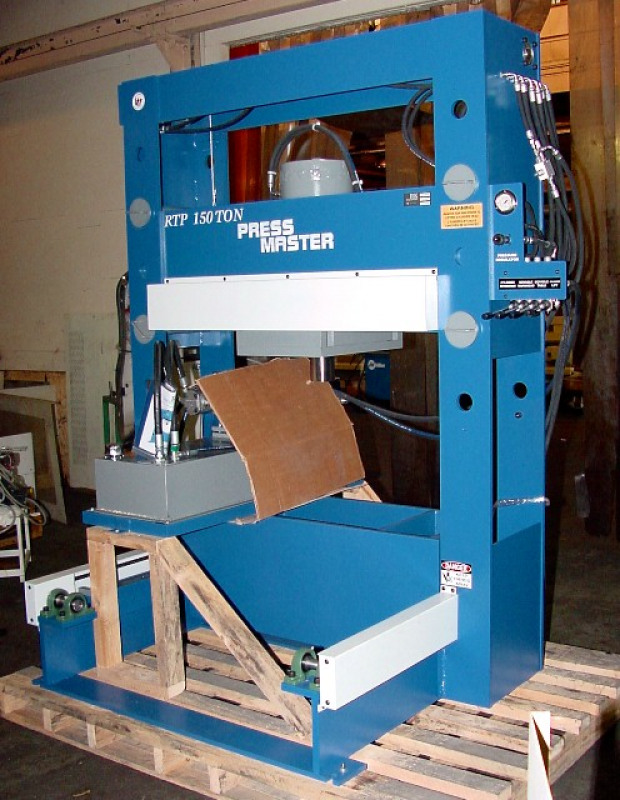

Pressmaster Rtp-150 Roll-In Bed Hydraulic H-Frame Presses

Listing description

150 ton pressmaster roll-in table
full 4 axis powered straightening press

rated capacity .............................. 150 tons
width between uprights ...................... 48"
depth between posts ........ ................ 16-3/4"
maximum ram to table ........................ 26-3/4"
stroke ...................................... 16"
table travel ................................ 23.25"
floor to table top .......................... 25-3/4"
cylinder bore size .......................... 11"
pressing speed .............................. 6 inch/min
advance speed ............................... 29 inch/min
return speed ................................ 33 inch/min
weight ...................................... 6,500#

dimensions
length ..................................... 71"
width ...................................... 88"
height ..................................... 100"

motor specs: 10 hp, 230/460 volt, three phase
(other voltages available)

standard features:
- powered movable table for ease of loading & positioning workpiece under cylinder
- powered movable workhead for off-center work allows operator to position the cylinder from left to right with the touch of a lever
- hydraulic power-lift for vertical displacement of head assembly
cylinder activation is fingertip controlled, the more the hand lever is engaged the more
- ram movement is accelerated, allowing the operator to control the proper speed for the task
- pressure regulator to limit the ram pressure

available options:
- v-blocks ................................... $950 set
- stop / start & emergency stop .............. $900
- front or back safety guard ................. $900 ea
- side safety guard ..............(per side).. $600
- foot pedal ................................. $3,400
- adj. stroke control c/w foot pedal ......... $5,000
- 24” stroke cylinder ........................ $1,400
- press plate ................................ $2,400
- comprehensive safety package with emergency stops and
lexan guarding ............................... $7,600

This equipment is located in US
