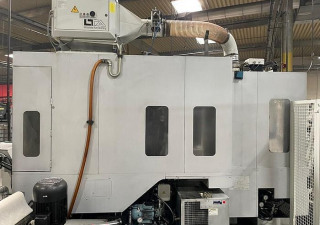

SW BA W04-22 Machining center - horizontal

Listing description

Type: BA W04-22
Producer: SW
Made in: 2007
Characteristic:
Control system: SIEMENS Sinumerik 840D
Maximum table load (evenly distributed): 2 x 450 kg
Number of synchronous axles: 5 pcs
Number of tools in the magazine: 120 pcs
Maximum rotary speed of the spindle: 17500 1/min
X-Axis travels: 400 mm
Y-Axis travels: 500 mm
Z-Axis travels: 425 mm
Taper: HSK 63
Max. tool diameter: 160 mm
Max. tool lenght: 300 mm
Max. tool weight: 10 kg
Machine height: 3100 mm
Machine length: 7000 mm
Machine width: 4350 mm
Machine weight: 18000 kg
Equipment:
Internal cooling
Chip convoyer
High pressure pump
Filtration Knoll
Tool breakage check
1x Two-digit 5th axis on A-Side (manufacturer SW)
5 axes (X/ Y/ Z/ A B/ W)

This equipment is located in CZ
