Tetra Pak Tetra Therm Aseptik Pilot PTDI 300 Food machinery

Listing description

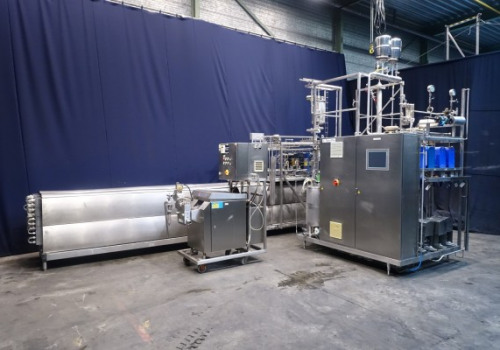

Complete pilot plant for UHT treatment of liquid foods
Complete flexible research pilot plant for UHT treatment of liquid foods. Heating / cooling methods: 1: indirect heating/cooling in plate heat exchangers, 2: indirect heating/cooling in tubular heat exchangers. 3: indirect heating/cooling in combination of plate and tubular heat exchangers. 4: direct heating (VTIS) with steam injection in combination of preheating in plate and tubular heat exchangers. 5: direct heating with steam infusion in combination of preheating in plate and tubular heat exchangers. 6: direct flash cooling with or without vacuum. 7: dearation with vacuum (without flash cooling). Products previously run on this line: milk (140 °C), condense milk (139 °C) and custard products (137 °C). Capacity: ± 55 - 270 liter per hour for direct heating in reliance on the product and ± 55 - 240 liter per hour for indirect heating in reliance on the product. 2x Holding cells, protein stabilizer and highest temperature sensor, double jacketed, with separate heating circuit. Including a pilot homogeniser. 2 stage. Hydraulic pressure control. 3 pistons. Stainless steel cladded. Control panel (with frequency converter) mounted on the machine. Manometer on outlet. The software and the touchscreen are updated in 2012 of the UHT pilot plant. Including instruction manuals, spare parts manuals, electric schemes and flowchart in English language. Mobile on a stainless steel frame.

Manufacturer
Tetra Pak
Type
Tetra Therm Aseptik Pilot PTDI 300
Capacity
55-270 liters per hour
Year of construction
1999
Power
380 V - 50 Hz - 3 Ph - Ground - Neutral
Condition
Excellent
Dimensions
± 500 x 300 x 200 cm
Weight
1800 kg

Manufacturer
APV
Type
Rannie 18.38
Capacity
up to 450 liters per hour
Year of construction
2001
Power
Maximum pressure in current configuration with this motor 400 bar
Weight
500 kg

This equipment is located in NL
