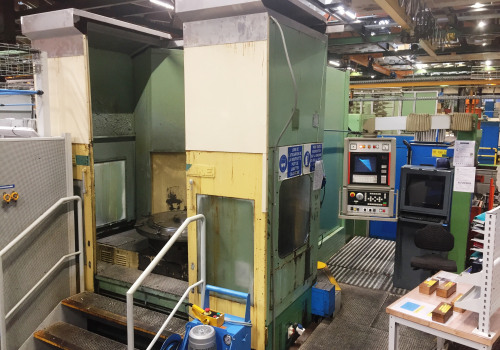

Forest Line TC-7-OR Machining center - 5 axis

Listing description

Main Features :

- Axis travel:
X axis: 1000 mm
Y axis: 1250 mm
Z axis: 1000 mm
B axis: 360 °
Axis A: + 90 ° / -105 °

Axis motors: SIEMENS brushless servomotors (1FT5 motors + 611A drives)

- brooch
Tool cone SA 50
Tool center sprinkler system

2 speed ranges:
Range 1> 20 to 750 rpm
Range 2> 751 to 3200 rpm

AC motor CEGELEC K 160 30 kW 1500 rpm
CEGELEC Alspa VNTV 4059 drive

- Machine table:
Dimensions: 800 X 800 mm

- Measurement:
HEIDENHAIN LS 106 rules on the X, Y and Z axes
HEIDENHAIN type ROD encoder on A (5th axis head), B (Table) axes, Tool changer.

- Tool changer:
1 Bucket chain (50 tools Type SA50)
BALLUFF chip reader
Motorized rotation with coded position managed by a PLC axis.

- Numerical control:
CN NUM 1060 M

Last electrical and mechanical retrofit in 1999

- Part probing:
RENISHAW Type OMP

This equipment is located in FR
