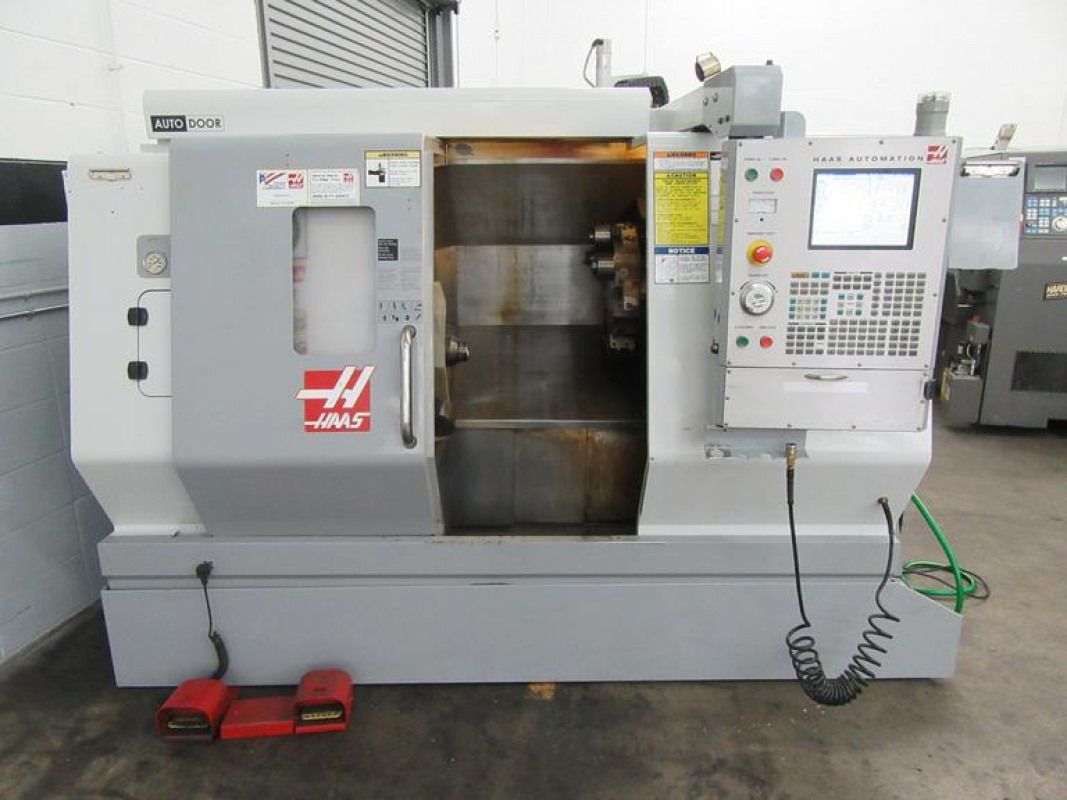

Haas SL-20

Listing description

control: haas 32bit cnc

max swing over front apron: 23.0"

max swing over cross slide: 9.5"

chuck size: 8.3" 3-jaw chuck and 5c collet chuck

max turning diameter: 10.3"

max turning length: 20"

rapid feed rates: 710 ipm

spindle speeds: 4,000 max rpm

spindle drive: 20 hp vector

spindle nose: a2-6

hole thru spindle: 3.0"

max swing over bed: 23"

hole thru draw tube: 2.06"

max swng over saddle: 9.5"

turret capacity: 12 station

turret index time (one tool): 1 second

turret travels (x,z): 8.45" / 20"

tailstock?: yes

turret index time: 1 second per station

tailstock travel: 20"

tailstock quill diameter / taper: #4 morse taper

rapid feed rates: 1,000 ipm

turret index time (one tool): 1 second

This equipment is located in US
