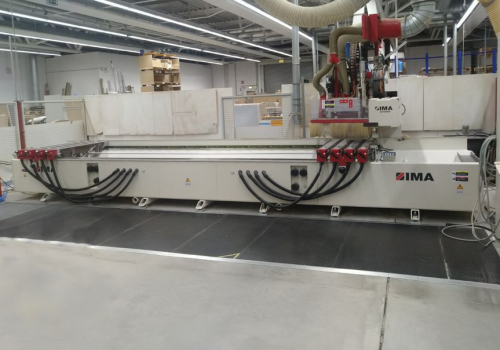

IMA BIMA 410 Wood CNC machining centre

Listing description

CNC processing centre, 4-Achs
Brand: IMA
Type: BIMA 410, 120/600
Year: 2001

Technical data:
- Processing area: X 6000 mm
- with standard units: Y 1200mm

- max. clamping height from top of vacuum cup Z1: 100 mm

- Height of working table: approx. 1000 mm

Changable field area:
- single process: X 2 x 2900 mm
- Empty space in centre: X 200 mm

- with pendular process: X 2 x 2400 mm
- Empty space in centre: X 1200 mm

- Operation speed: max. 40 m/min.
- Rapid speed: X-/Y-Achse 80 m/min., Z-Achse 25 m/min.
- Acceleration: 3 m/sec

Equipment
- 1 central integrated CNC-axis 360° rotation
- Massive static and dynamic steife steel construction.
- In X-direction movable support with cantilever.
- Central lubrification
- 2 Vacuum pumps 140m³/h

- electr. safety mats

- 1 right and left hand stop, fix ordered in X-direction
- 8 consoles
- 2 rear stops for bigger parts, ordered on arm 1+3 and 6+8
- The vacuum cups will be fixed by patented 2-circlulation clamping system, so no hoses are needed.
- 1 program controlled vacuum connection per working field for holding the cups, equipment for 2 places.
- 8 Support rails

Main spindle from year 2021, 12 kW
- Tool holding: HSK F63, cone Ø 38mm
- Spindle is liquid cooled
- Tool weight: max. 6 kg
- Rotation direction: right / left hand run
- Rotation speed: stepless
- Freuquency controlled drive

1 automatical tool magazin with 18 positions
- Load capacity: max. 60 kg
- Tool length: max. 150 mm
- Tool-Ø:
max. 100 mm at use of whole capacity,
max. 150 mm at adjacent free positions

1 Adapter unit saw 90 degrees fix, Ø 200mm
- Rotation: max. 15000 rpm

1 Adapter unit saw, 0-100° swivable

1 verticale drilling unit
- Stroke: pneumatic
- Amount of spindles: 9
- Spindel distance: 32 mm
- Spindel-stroke: 45 mm
- Drive: 2 x1 kW, 150 Hz
- Rotation direction: right hand side
- Rotation speed: 6000 - 900 UpM
- Tool chuck: Ø 10H7
- Total length of drillers: max. 77 mm
- Dill-Ø: max. 20 mm

1 verticale drilling unit
- Stroke: pneumatical
- Amount of spindles: 11
- Spindle distance: 32 mm
- Spindle-stroke: 45 mm
- Drive: 2 x1 kW, 150 Hz
- Rotation direction: right hand side
- Rotation speed: 6000 - 900 UpM
- Tool chuck: Ø 10H7
- Total length of drillers: max. 77 mm
- Driller-Ø: max. 20 mm

IMAwinCAD for BIMA-machines without gluing unit
- Selectabe macros for drilling, sawing, milling
- Complete CA-functionality
- autom. programming for vacuum cups
DXF-interface

LED-setup support for 8 consoles

Machine weight: approx. 7500 kg

This equipment is located in DE
